Model

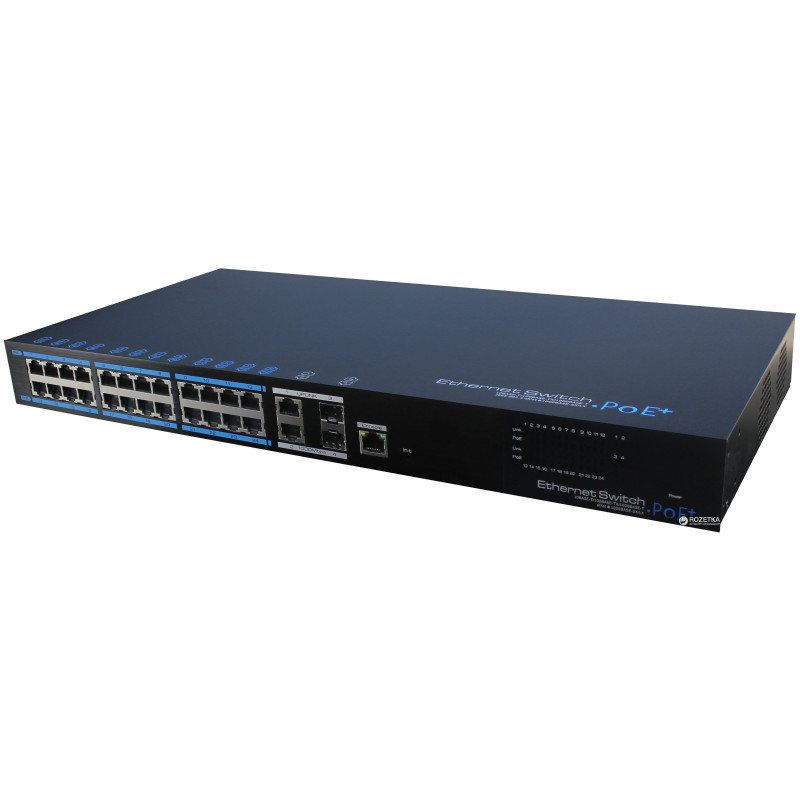

UTP7224E-L2

Downstream Ports

24* 10/100Base-TX

Uplink Ports

2*1000Mbps SFP Port and 2*10/100/1000Base-T

Network Standard

IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3X、 IEEE 802.1Q IEEE 802.1p IEEE 802.3ad 、IEEE 802.1D、IEEE 802.1X

Switch Capacity

12.8Gbps

Throughput

9.52Mpps

Switch Processing Scheme

Store and Forward

MAC Table

16K

Lightning protection

6KV Execute：IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute：IEC61000-4-2

Power Supply

100~240V AC；50/60Hz

Power Dissipation

＜50W

Work temperature

-10℃~50℃

Storage temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension（L×W×H）

442mm×255mm×44.5mm

Weight

3.73kg

Regulator

CE、FCC、ROHS
